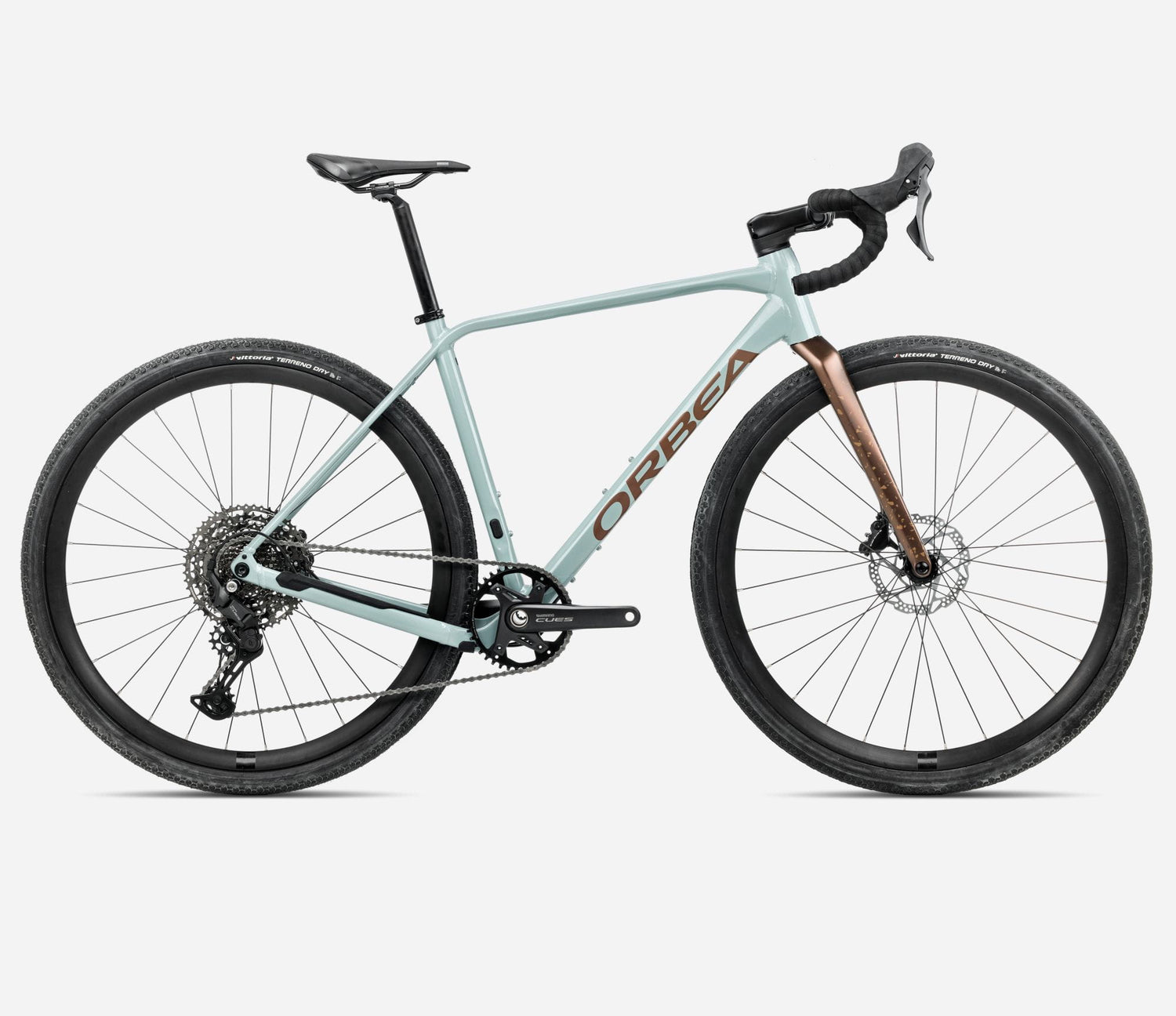

terra gravel bike TERRA H45 1X Blue Stone (Gloss)

terra gravel bike TERRA H45 1X Blue Stone (Gloss)Gravel from the ground up Designed from the first moment fully for use on gravel, the Terra is anything but a repurposed road bike or a slim mountain bike. The Terra is gravel. It brings more comfort to your adventures on the road and finally lets you discover where that gravel path at the end of the paved road leads. Or how about an adventure through the night? Out there, the big, wide world is waiting for you. And the Terra is ready to discover it

Gravel from the ground up
Designed from the first moment fully for use on gravel, the Terra is anything but a repurposed road bike or a slim mountain bike. The Terra is gravel. It brings more comfort to your adventures on the road and finally lets you discover where that gravel path at the end of the paved road leads. Or how about an adventure through the night? Out there, the big, wide world is waiting for you. And the Terra is ready to discover it with you.

Tire clearance
For fast tours and efficient propulsion on gravel roads, the Terra can be equipped with 700c x 45 tires. And if you want more comfort, puncture safety, and grip, you opt for 650b x 50.

Compatible groupsets
Since we completely redesigned the frame, we were also able to tackle a problem many gravel bikes face: the limitations in tire clearance when choosing different crank options.

Lockr
The carbon frame of the Terra offers a storage compartment hidden in the down tube. It is located behind the bottle holder and provides space for a spare tube, a pump or a CO2 cartridge, and a selection of tools.

Equipment:
Frame: Orbea Terra Hydro Disc, hydroformed, triple-butted aluminum, HS 1.5", PF, Thru Axle 12mm x 142mm rear, Thread M12x2 P1, DT internal cable routing, 27.2mm seat tube, MMS System
Fork: Orbea Terra ICR, Full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru Axle 12x100mm, Thread M12x2 P1
Headset: FSA 1-1/2" integrated aluminum cup
Drivetrain
Crankset: Shimano GRX RX610 40t
Levers: Shimano GRX RX610
Cassette: Shimano CS-M7100 10-45t, 12-speed
Rear derailleur: Shimano GRX RX822 GS
Chain: Shimano M6100
Cockpit
Handlebar: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Stem: OC Road Performance RP22, -5º
Brakes
Brakes: Shimano RX400 Hydraulic disc brake
Wheels
Wheelset: Alloy, Tubeless, 700c, 21c
Tires: Vittoria Terreno Dry Gravel 700x38c
Front axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid with internal thread
Components
Seatpost: SP 0.2 Carbon, 27.2 mm, Setback 20
Saddle: Prologo Akero AGX, black rails, Size 155 mm
Accessories
Handlebar tape: Orbea Eva

* Specification may vary in details in exceptional cases, depending on the manufacturer.
